YTHZ/TDYZ

Motorized Drum for Electric Winch (Ø240-800mm)

Traction drum used in winches for load pulling

Motorized Drum for Electric Winch (Ø240-800mm)
  • Motorized Drum for Electric Winch (Ø240-800mm)
  • Motorized Drum for Electric Winch (Ø240-800mm)
  • Motorized Drum for Electric Winch (Ø240-800mm)
    • Request a Quote
    YTHZ/TDYZ

    Motorized Drum for Electric Winch (Ø240-800mm)

    Traction drum used in winches for load pulling

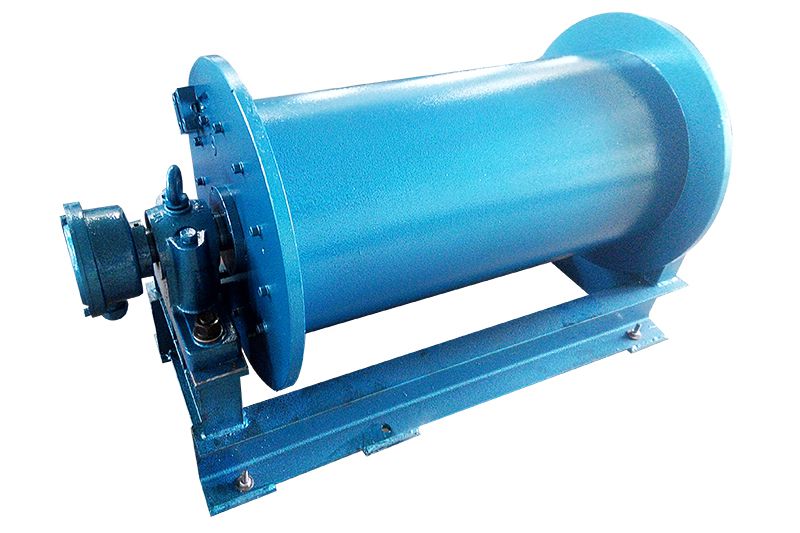

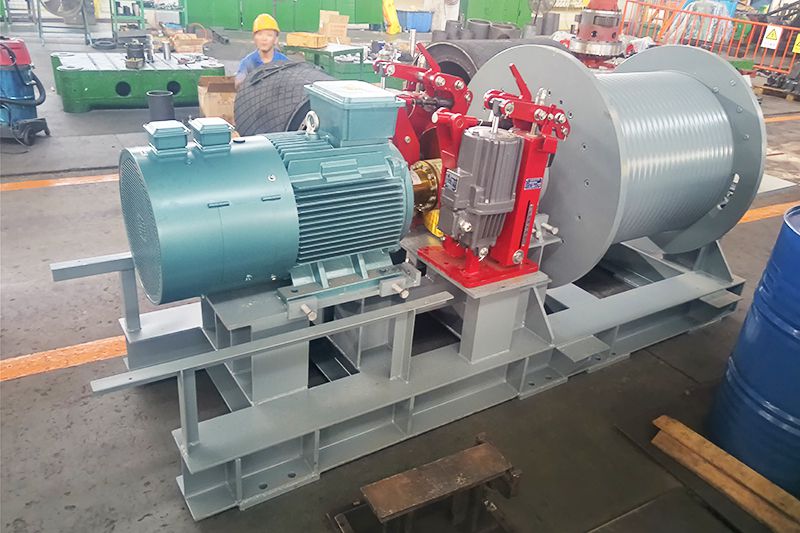

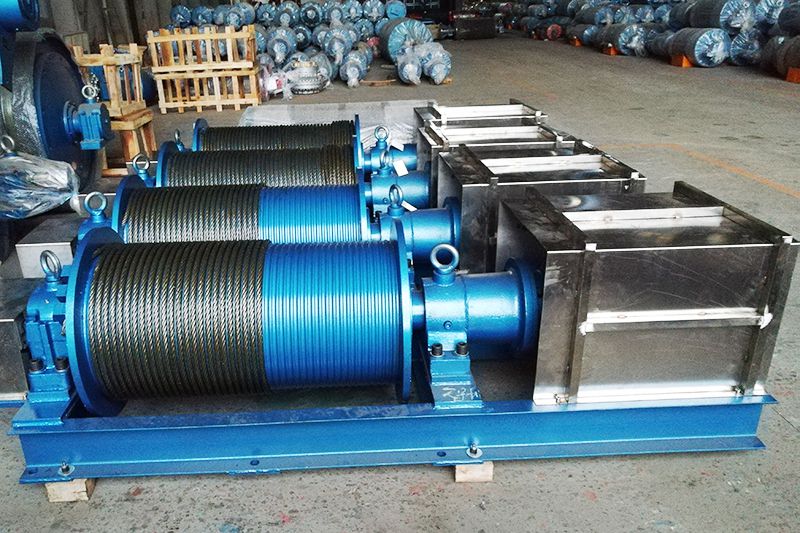

    Motorized winch drum has a diameter ranging from Ø240 to Ø800 and a traction force of 1 to 15 tons. The drum surface can be treated with either a guiding spiral groove or a smooth surface. The types of brakes used include disc brakes, electric-hydraulic drum brakes, electromagnetic safety brakes, etc. Auxiliary devices are optional in cam limiters, overspeed switches, integrated brackets, wire ropes or cables, protective covers, etc.

    Applications

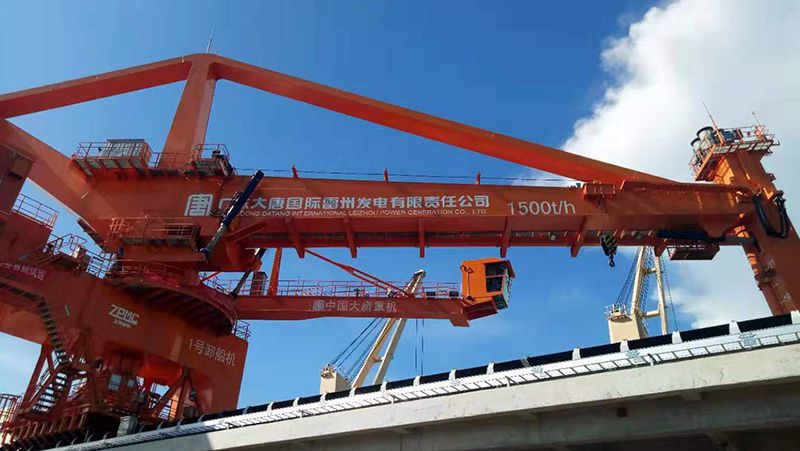

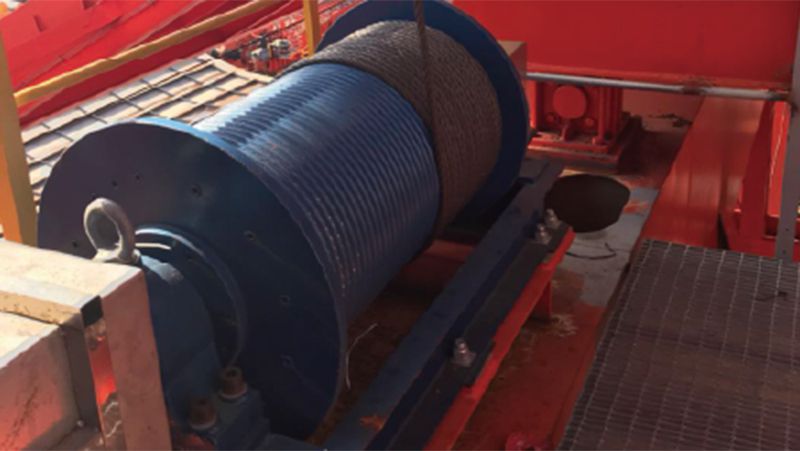

    Motorized winch drum is used in port machinery, construction hoisting machinery, oil pumps, belt tensioning devices, belt replacement devices, large winch rope replacement devices, cable winding and unwinding equipment, etc.

    • Motorized Drum for Electric Winch (Ø240-800mm)
    • Motorized Drum for Electric Winch (Ø240-800mm)
    Technical Data
    Traction
    F kN    		 Average Rope Speed
    V m/s    		 Drum Diameter
    D mm    		 Min. Drum Length
    L mm
    10 0.05～0.32 Ø240 450
    15 0.05～0.32 Ø320 725
    20 0.05～0.32 Ø400 840
    50 0.1～0.32 Ø500 768
    100 0.1～0.32 Ø630 840
    150 0.1～0.32 Ø800 1070
