    YDM

    Hydraulic Motorized Pulley (Ø110-630mm)

    Hydraulic drum motor used in belt conveyors for unit handling

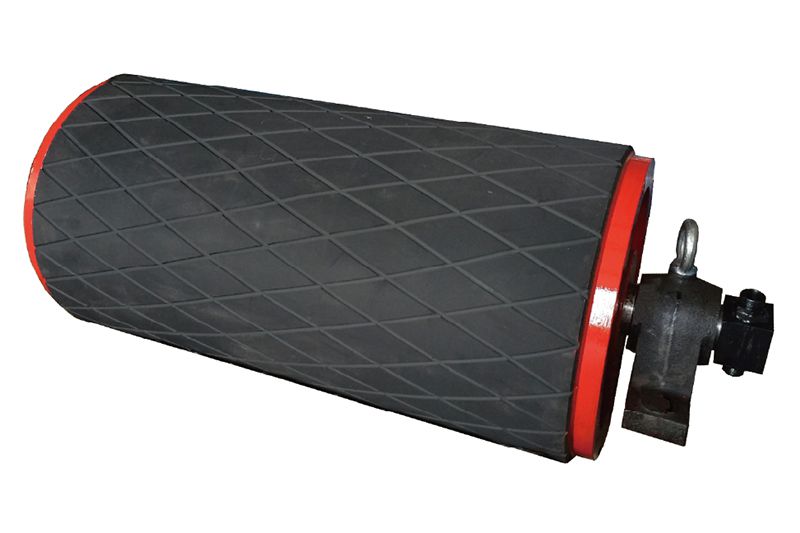

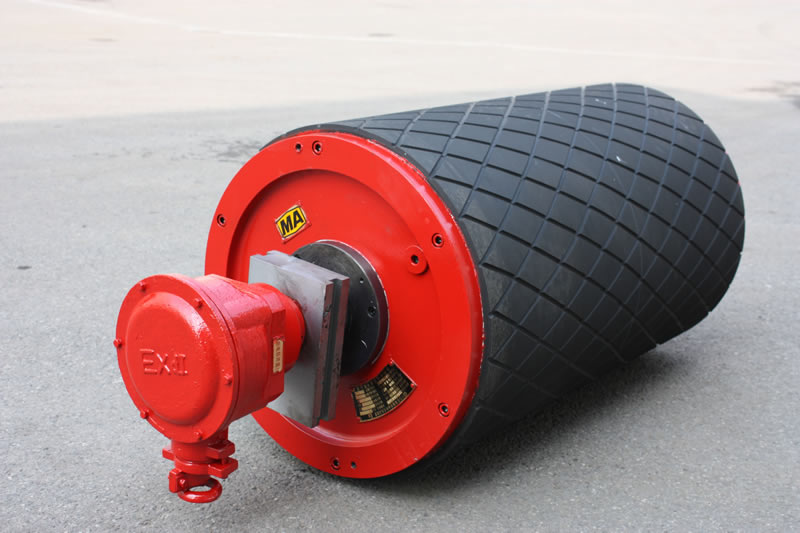

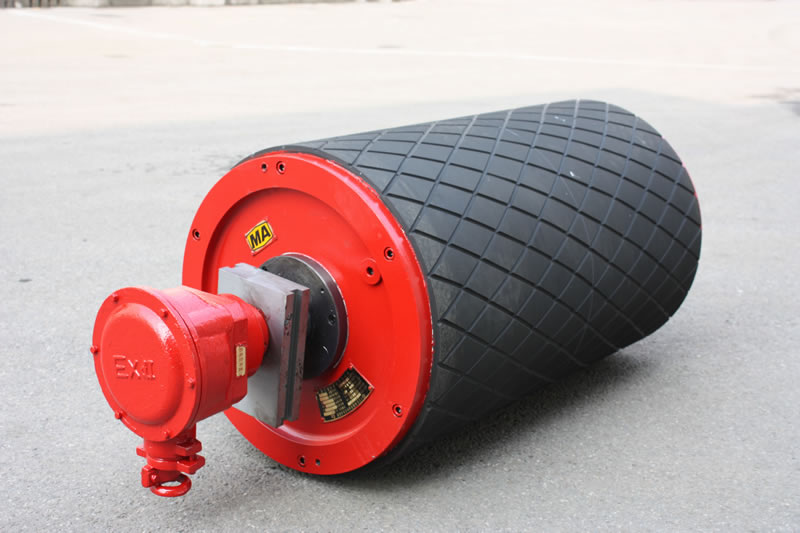

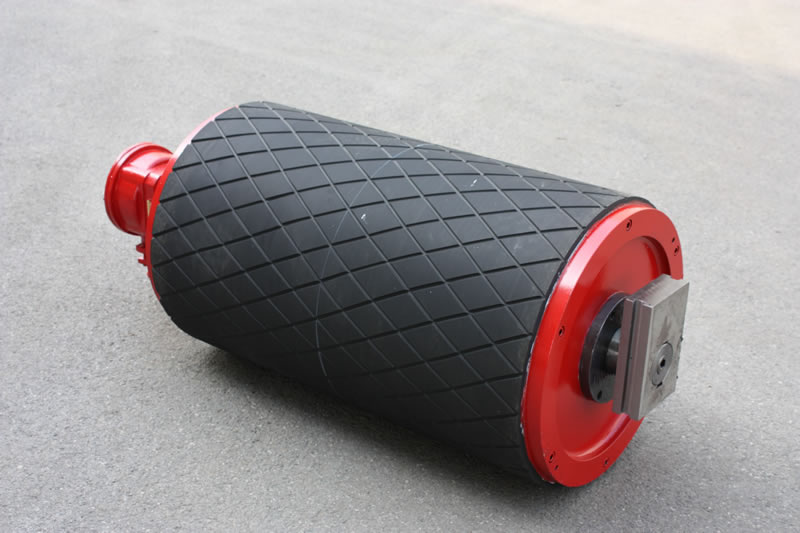

    YDM hydraulic motorized pulley is a key new product developed by our company based on the motorized pulley. It is a drive device that integrates hydraulic motors, planetary gear reducers, and drive drums. This hydraulic drum motor has been widely used in belt conveyors.

    Applications

    Hydraulic motorized pulley is used in places where hydraulic power is provided by internal combustion engines, such as engineering locomotive belt conveyors, airport baggage handling vehicles, loading belt conveyors, and slag scrapers.

    Precautions for hydraulic motorized pulley
      • The output torque of the hydraulic drum motor is proportional to the pressure provided by the hydraulic system. The pressure difference must not exceed the specified value.
      • When the hydraulic motorized pulley is used continuously, the speed must be less than the rated speed and must not exceed the rated speed.
      • Generally, the oil outlet of the hydraulic drum motor is directly connected to the oil tank. The hydraulic drum motor can be used in series or parallel with other hydraulic equipment. When used in series or parallel, if the back pressure exceeds 5MPa, the external oil outlet needs to be directly connected to the oil tank.
    Technical Data
    Drum Diameter
    D mm    		 Rated Flow
    L/min    		 Rated Pressure
    MPa    		 Belt Speed
    V m/s    		 Comparative Power Min.
    P kW    		 Min. Belt Width L mm Tie-in
    Ø110 15 8 0.32～0.8 1.1～2.2 360 M14x1.5
    Ø165 20 8 0.8～1.6 1.1～2.2 650
    Ø216 20 10 0.13～2.0 1.5～3 450 M18x1.5
    Ø240 20 10 0.16～2.0 1.5～3 450
    Ø270 20 4 0.05～0.63 0.75～1.5 480 M14x1.5
    Ø320 40 10 1.0～2.5 4～5.5 600 M22x1.5
    55 12 0.5～2.5 7.5～9
    60 14 0.63～2.5 9～11
    Ø400 60 14 0.5～2.5 4～5.5 700 M27x2
    80 14 0.8～2.5 7.5～11
    100 12 1.6～2.5 15～17
    Ø500 100 10 0.5～2.5 7.5～11 700 M27x2
    125 10 1.0～2.5 15～17 790
    125 16 1.0～3.15 18.5～22 M33X2
    150 18 1.0～2.5 30～37 890
    Ø630 100 10 0.63～3.15 7.5～11 700 M27x2
    125 10 1.25～3.15 15～17 790
    125 16 1.25～4 18.5～22 M33X2
    150 18 1.25～3.15 30～37 890
