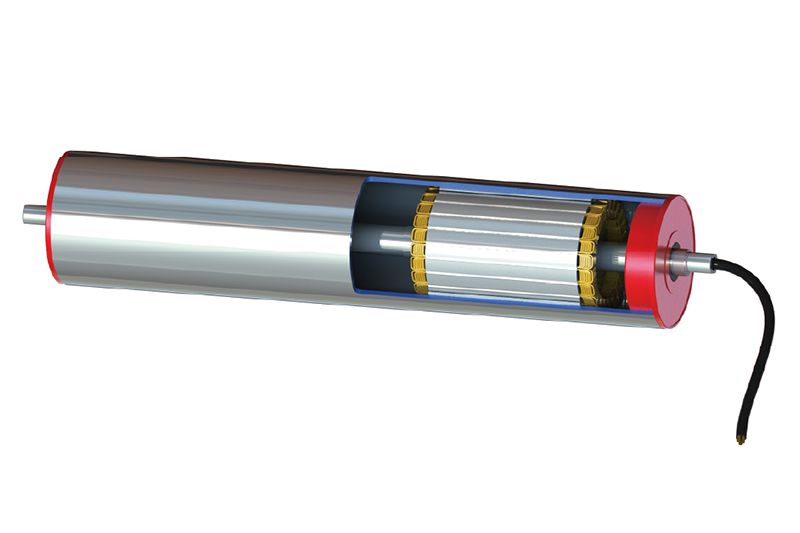

Permanent Magnet Motorized Pulley (Ø92-240mm, AC 0.25-5.5kw)

PMAC drum motor used in conveyor systems for unit handling

Permanent Magnet Motorized Pulley (Ø92-240mm, AC 0.25-5.5kw)
Request a Quote
JZD

Permanent Magnet Motorized Pulley (Ø92-240mm, AC 0.25-5.5kw)

PMAC drum motor used in conveyor systems for unit handling
Applications

Bulk materials handling and object production lines, belt conveyors used in logistics sorting, warehousing, food, security inspection, electronics, home appliances, tires, and other industries

  • Permanent Magnet Motorized Pulley (Ø92-240mm, AC 0.25-5.5kw)

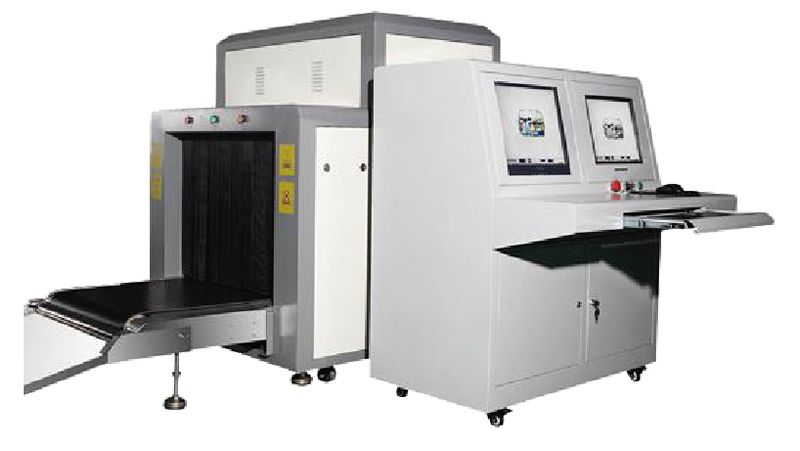

    Security scanner belt conveyor
  • Permanent Magnet Motorized Pulley (Ø92-240mm, AC 0.25-5.5kw)

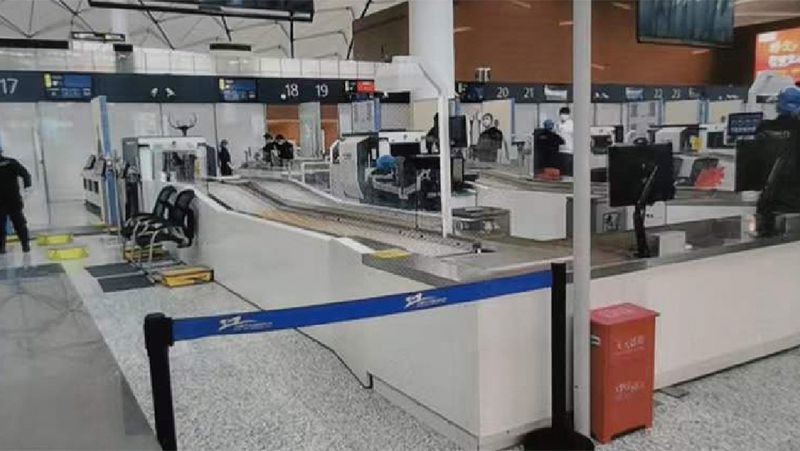

    Baggage belt conveyor
Features
    • Permanent magnet motorized pulley has a drum diameter of Ø92 to Ø240mm and a power range of 0.25～5.5 kW.
    • The drum motor adopts inverter control with sensorless vector control technology, achieving energy savings of up to 25%.
    • Self-cooling is adopted.
    • Mounting brackets and junction boxes are optional based on customer needs.
Technical Data
Drum Diameter
D mm		 Power
P kW		 Rated Torque Under Corresponding Belt Speed
(m/s) Nm		 Drum Length
mm
0.5 0.63 0.8 1.0 1.25 1.6 2.0 2.5
Ø92 0.25 20 17 14 11         420~1000
0.37     19.5 16 13 10
0.55         19 15 12 10
0.75           20 16 13
Ø100 0.25   19 15 12         420~1000
0.37     20 17 14 11
0.55         20 16 13 10
0.75           20 17 14
Ø113 0.25 26 21 16 13         420~1300
0.37 36 30 24 19 15 12
0.55     35 28 23 18 14
0.75         30 24 19 16
1.1           35 28 23
1.5             39 31
Ø138 0.37 45 36 29 23 18.5 14.5 11.5 9.5 420~1500
0.55     42 35 28 22 17 14
0.75     57 46 38 29 23 19
1.1     82 67 54 42 34 28
1.5       90 72 56 45 36
2.2           90 72 57
3             90 72
Ø165 0.55 84 67 53 42 34 26     470~1500
0.75 115 91 72 57 46 36 29
1.1   133 105 84 67 52 42 33
1.5     144 115 92 72 57 46
2.2         134 105 84 67
Ø216 2.2   300 270 235 190 150 120 95 420~1500
3       300 260 200 160 130
4         300 260 215 170
5.5             260 236
Ø240 2.2     325 260 205 160 130 105 590~1500
3       350 280 220 175 140
4         375 290 235 188
5.5             325 260
