Vertical Pallet Conveyor

Pallet lifter for lifting and lowering of pallets

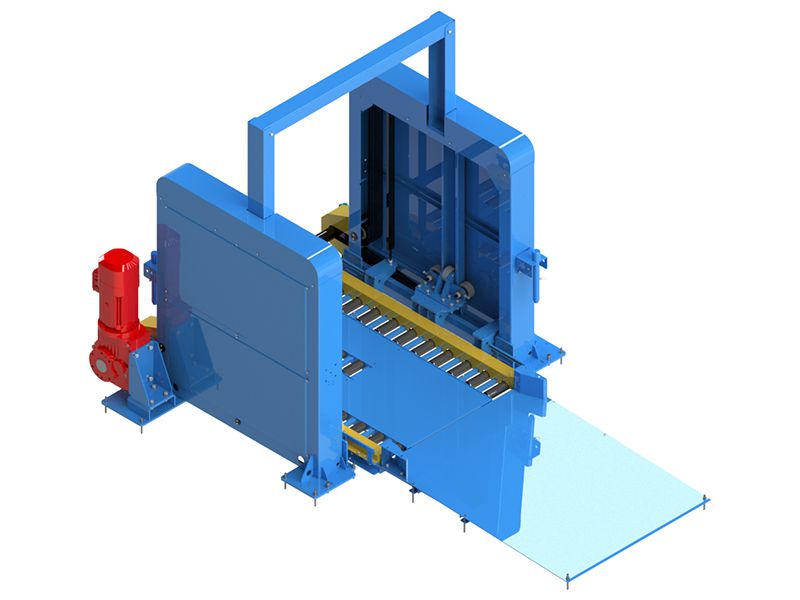

Vertical pallet conveyor is composed of a lifting device and a conveyor, allowing for the mutual transfer of pallets from the ground to a specified height. The vertical movement of this equipment is driven by a single motor synchronously on both sides of the conveying platform, ensuring the levelness of the platform, providing high synchronization and reliability in conveying. Additionally, the use of a single motor reduces the cost of the drive components and enhances the economy. After the improvement of the motor being placed at the bottom, the overall height is reduced, making it more adaptable in height-restricted areas.

Application

Vertical pallet conveyor is used for the docking of manual carts, electric carts, AGVs, and other handling equipment with other conveying equipment.

Transportable Materials

Vertical pallet conveyor is suitable for handling various materials carried on pallets.

Applicable Industries

EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.

Features

Utilizes roller stopper guiding.

Conveyor surface height of 80mm.

Four-chain lifting mechanism.

Technical Data

Parameter
Length mm	1400≤L≤2800
Width mm	B+1280mm
Effective width B mm	820≤B≤1420
Height H mm	80mm/1000mm (Low/High)
Motor Brand	SEW, NORD, CPG
Chain Brand	ZIQIANG CHAIN, CHOHO
Bearing/Bearing Seat Brand	HRB/FSB, NSK/FSB, SKF/FSB, NSK/NSK
Color	Powder coating with all RAL colors available.
Nonstandard models can be customized.

Product Information
Basic Information	Load Capacity	≤1200kg
	Conveying Speed	12, 16, 18m/min
	Lifting Speed	8m/mim
	Temperature	+5℃ to +45℃
	Relative Humidity	≤90% (No condensing)
Roller	Roller Diameter	Ø60
	Roller Drive	Steel double sprocket
	Installation	Internal thread
Drive Mode (Conveying Unit)	Drive Motor	Gear motor
	Motor Power	0.37, 0.55, 0.75, 1.1kW (braked motor)
	Motor Voltage	380V
	Brake Voltage	220V
	Drive Method	Chain
Installation	Ground Installation	Expansion bolts
	Ground Flatness	Level ground, error ≤5°
	Height Adjustment	±10mm
