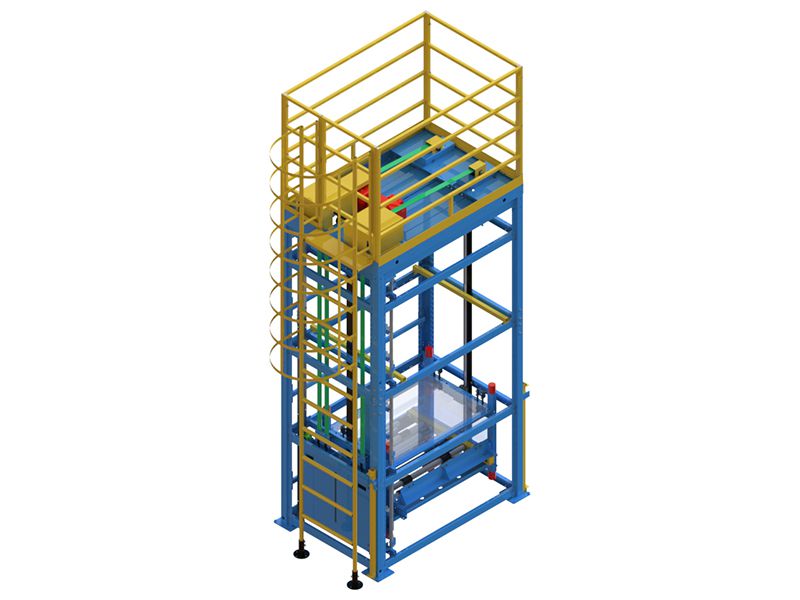

Light Duty Vertical Reciprocating Conveyor

Vertical lift system for transferring materials between several levels

Light Duty Vertical Reciprocating Conveyor

Light Duty Vertical Reciprocating Conveyor

Vertical lift system for transferring materials between several levels

Light duty vertical reciprocating conveyor is used for high-speed reciprocating transportation of smaller, lightweight pallet goods between several levels. It serves as a more convenient and efficient alternative to freight elevators in industries such as warehousing, distribution, and automated production lines.

The light-duty reciprocating vertical lift system consists of top drive components, main frame, cargo platform (carrying conveyor), counterweight components, external conveyor lines, and various accessories. The most important drive components include drive wheels, driven wheels, lifting chains/synchronous belts, drive motors, and drive frames. The specifications of the drive sprockets and lifting chains are typically customized based on the specific requirements of the project.

Request a Quote
Transportable Materials

Light duty vertical reciprocating conveyor is used for transferring various materials carried on pallets.

Applicable Industries

EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.

Features

Light duty vertical reciprocating conveyor has a small load capacity, small space, smooth lifting operation, higher vertical conveying efficiency, and a wide range of vertical transportation heights.

  • Four-column frame.
  • Equipped with a counterweight module.
  • Optional integration with built-in conveyor.
  • Four-chain lifting mechanism.
  • Power unit located at the top.
  • Enclosure using structural mesh panels.
  • Utilizes elevator guide rails.
Technical Data
Product Information
Basic Information Load Capacity ≤600kg
Conveying Speed 12, 16, 18, 20m/min
Lifting Speed 20m/mim~90m/min
Temperature +5℃ to +45℃
Relative Humidity ≤90% (No condensing)
Equipment Index Length mm 1800≤L≤3000
Width mm 2100≤L≤4100
Lowest Infeed/Outfeed Position 500mm
Drive Mode (Lifting) Drive Motor Gear motor
Motor Power Depending on the project
Motor Voltage 380V
Brake Voltage 220V
Drive Method Chain/Timing belt
Installation Ground Installation Expansion bolts
Ground Flatness Level ground, error ≤5°
Height Adjustment ±10mm
