Continuous Vertical Conveyor

Continuous Vertical Conveyor

Vertical lift system for transferring containers and cartons between two levels

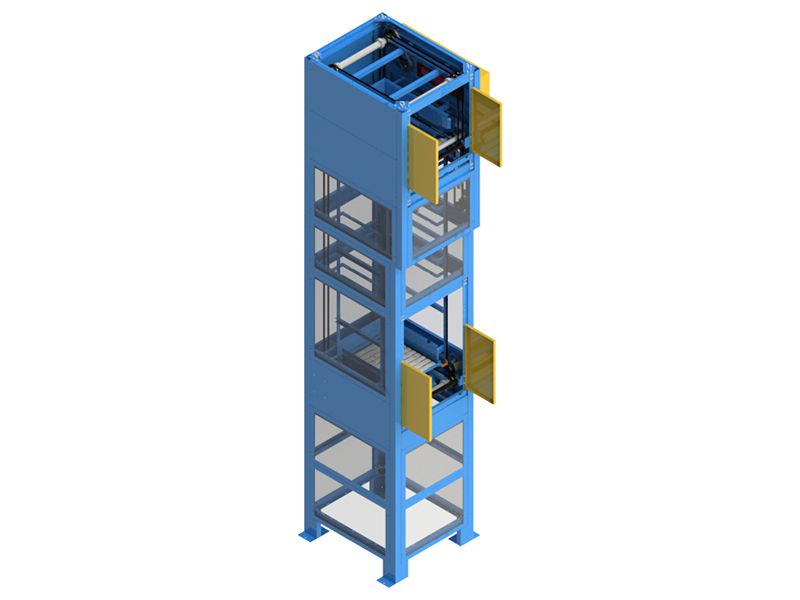

Continuous vertical conveyor is driven by four lifting chains to transport containers and cartons goods continuously and rapidly in one direction between two levels or within a shaft. It eliminates the inconvenience and low efficiency of traditional elevators in industries such as warehousing, distribution, and automated production lines.

The vertical lift system comes with a steel structural framework, with the external frame consisting of four sheet metal columns formed by bending, reinforced with snap-lock beams. The frame-type structure enhances the stability and performance of the equipment.

Request a Quote
Transportable Materials

Regularly container and carton goods, such as plastic boxes and cardboard boxes.

Applicable Industries

EV battery, automated warehouse logistics, tobacco and alcohol industry, e-commerce retail, pharmaceuticals and food, automotive and construction materials, etc.

Features
  • Utilizes a four-column frame.
  • Optional counterweight module.
  • Four lifting chains.
  • Power unit located at the top.
  • Enclosure uses structural mesh panels.
  • Uses elevator guide rails.
  • Optional integration with built-in conveyor.
Technical Data
Product Information
Basic Information Load Capacity ≤50kg
Conveying Speed 15m/mim~30m/min
Lifting Speed 15m/mim~30m/min
Temperature +5℃ to +45℃
Relative Humidity ≤90% (No condensing)
Equipment Index Length mm 1200~1900
Width mm 1100~1800
Lowest Infeed/Outfeed Position 600mm
Drive Mode (Lifting) Drive Motor Gear motor
Motor Power Depending on the project
Motor Voltage 380V
Brake Voltage 220V
Drive Method Chain
Installation Ground Installation Expansion bolts
Ground Flatness Level ground, error ≤5°
Height Adjustment ±10mm
