    Poly-V Belt Driven Conveyor Roller

    Power driven rollers for belt driven roller conveyor

    The poly-V pulley of poly-V belt driven conveyor roller is installed at the end of the roller, separating the driving and conveying areas to avoid potential interference with the goods during transportation. There are multiple groove types available for high adaptability.

    Poly-v belt driven conveyor roller
    Request a Quote
    Features
    • Utilizes PJ poly-V belt drive for high speed and low noise operation.
    • For heavy load startup conditions, steel poly-V belt can be selected.
    • The standard model is equipped with a 9PJ groove type, available in 11PJ/13PJ options, along with other poly-V belt types for greater adaptability.

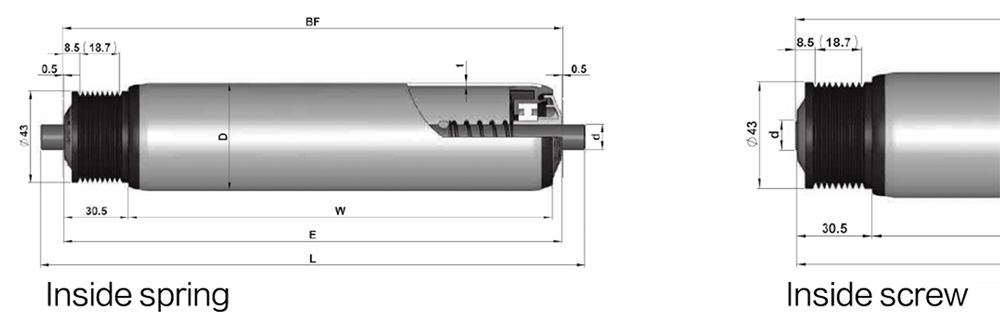

    Technical Data
    Tube Diameter (D) Tube Thickness (T) Axis Diameter (d) Tube Material
    Galvanized Steel Stainless Steel
    50 1.5/2.0 12/15/S11 √ √
    60 2.0 12/15/S11 √ √
