AL1200

Universal Gravity Conveyor Roller

Non-powered rollers for gravity roller conveyor

Universal Gravity Conveyor Roller
  • Universal Gravity Conveyor Roller
  • Universal Gravity Conveyor Roller
  • Universal Gravity Conveyor Roller
  • Universal Gravity Conveyor Roller
    • AL1200

    Universal Gravity Conveyor Roller

    Non-powered rollers for gravity roller conveyor

    Universal gravity conveyor rollers are mainly made of stainless steel, featuring corrosion resistance, high temperature resistance, and pressure resistance. Some non-powered rollers are made of PVC material, which offers excellent acid and corrosion resistance, lightweight, and easy installation.

    Universal Gravity Conveyor Roller
    Request a Quote

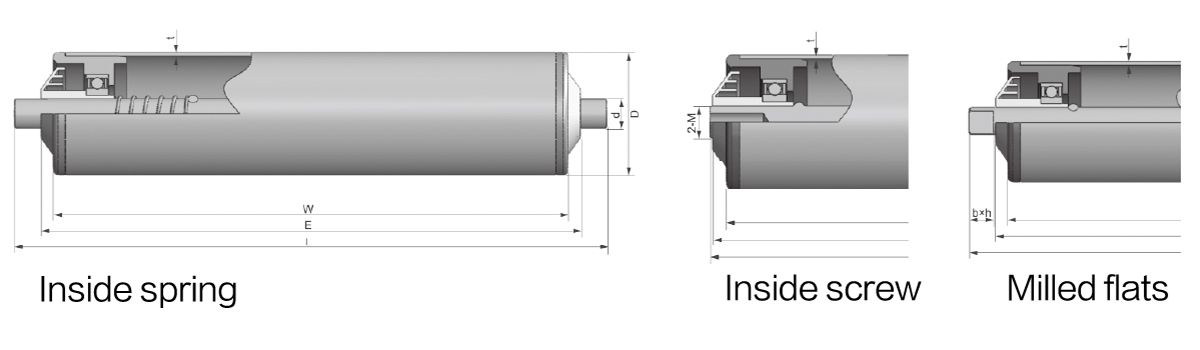

    Inside spring
    Inside screw
    Milled flats
    Applications

    Non-powered roller is suitable for light and medium-duty non-powered (gravity flow) conveying tasks in warehousing, packaging handling, manufacturing, and distribution applications.

    Features
      • Utilizes nylon plastic steel bearing plate assembly
      • Uses standard deep groove ball bearings
      • Inner and outer flanges of bearing can be selected in an anti-static style.
      • Has a certain dust and moisture resistance capability
      • Low noise, flexible rotation, and pleasing aesthetics
      • Temperature range: -5℃ to 40℃
    Technical Data
    Tube Diameter (D) Tube Thickness (T) Axis Diameter (d) Tube Material
    Galvanized Steel Stainless Steel Aluminum Alloy PVC
    25 1.2/1.5 8 √ √
    32 1.2/1.5 10 √ √
    38 1.2/1.5 12/S11 √ √
    50 1.5 12/15/S11 √ √ √
    50 2 12/15/S11 √ √
    50 2.5 12/15/S11 √ √   √
    50 3 12/15/S11 √ √
    60 1.5/2 12/15/S11 √ √
    76 3 20 √ √
